FrameStar® 96 Well Skirted PCR Plate, 200µl, Pack of 50 (4ti-0960/C)
FrameStar® 96 Well Skirted PCR Plate, 200µl, Pack of 50 (4ti-0960/C)
Regular price
£94.95
Regular price
Sale price
£94.95
Unit price
/
per

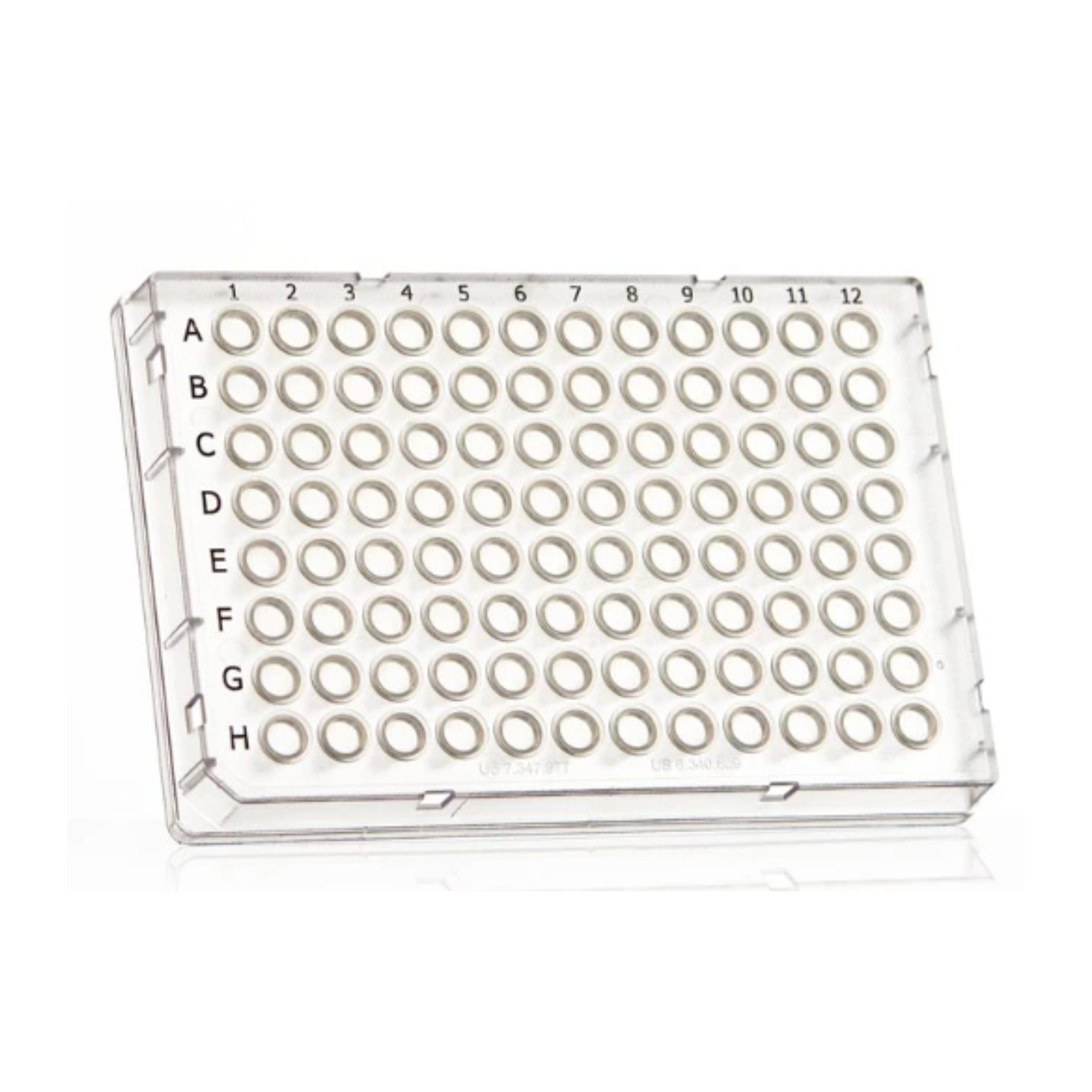

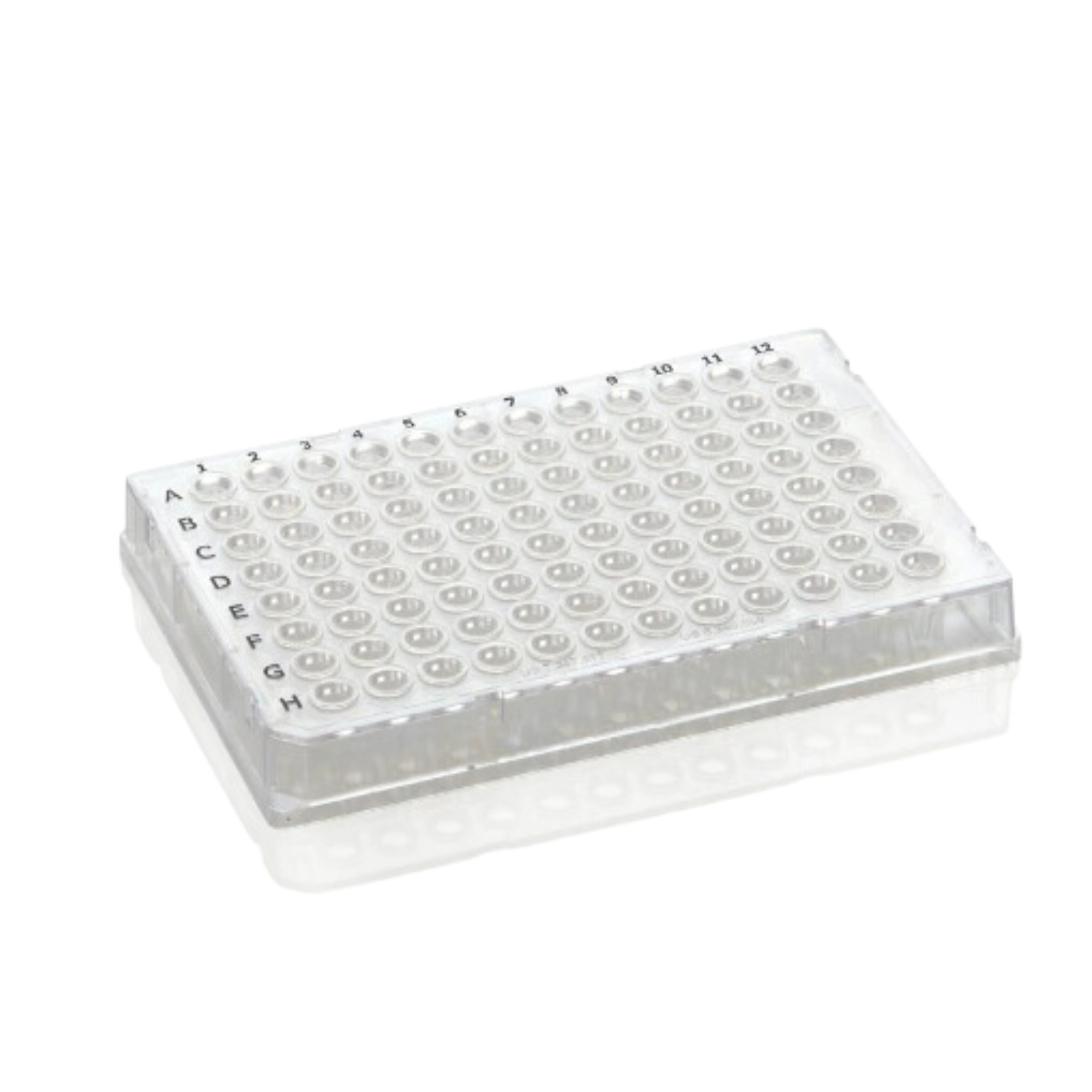

96 well skirted plates designed for use on standard thermal cyclers. Low profile wells, recommended for reaction volumes <20µl. Rigid frame eliminates warping and distortion during PCR. Ideal for use with robotic systems.
- PP wells, PC frame; cut corner H1
- <100µl working volume, 200µl total well capacity
Plate length | 127.76 ± 0.25mm |
Plate width | 85.48 ± 0.25mm |
Plate height | 16.10 ± 0.25mm |
Well depth | 15.10 ± 0.10mm |
Well diameter | 5.50 ± 0.10mm |
Total well capacity | 0.2ml (200µl) |
Working volume | <0.1ml (100µl) |
Distance to center of A1 from top edge | 11.24 ± 0.25mm |
Distance to center of A1 from left edge | 14.38 ± 0.25mm |
Pitch (distance between A1 and A2) | 9.00mm |
